Process equipment for erection and maintenance of power transformers, reactors and other oil-filled equipment with voltage up to 1150 kV including
Ukraine, Kharkov

UVM 10-10 U1
Plant for processing transformer (turbine, industrial) oil

Designed for thermal vacuum processing of transformer, cable, turbine, industrial and other oils to remove gases, water and mechanical inclusions. It is used during erection, maintenance, operation of oil-filled high-voltage equipment both air-tight and non-air-tight with voltage up to 1150 kV including (power transformers, high-voltage switches etc.) and turbines. The Plant can be used for heating the equipment with hot oil, for nitriding transformer oil and topping up high-voltage inlets.

It is manufactured in compliance with requirements of TU U 29.2-04624312-026-2001 and has Certificates of Compliance in certification systems UkrSEPRO and GOST R of State Standard of Russia.

  • Climate version — У1 in compliance with GOST 15150-69.
  • Average service time — at least 10 years, guarantee period — 1 year.
  • Service personnel — 1 person.
  • Ecological safety — according to GOST 12.1.005-88.
  • Fire hazard — in compliance with GOST 12.1.004-91.
  • Electric safety — according to GOST


Unit for transformer (turbine, industrial) oil processing UVM10-10-U1



Capacity, m3/h, rated:
  • in the mode of degassing, drying and filtration
  • in the mode of heating and filtration
  • in the mode of nitriding

  • 10,0
  • 30,0
  • 4,5
Capacity adjustment range, m3/h 0-12
* Parameters of the processed oil:
  • volumetric gas content, %, not more
  • mass moist content, g/ton, not more
  • content of mechanical inclusions, g/ton, not more
  • nitrogen content after nitriding, %
  • contamination class according to GOST 17216, not worse
  • filtration fineness, µm
  • breakdown voltage, kV, at least

  • 0,1
  • 10,0
  • 8
  • 8,5±0,5
  • 9
  • 5
  • 70
Oil temperature in the mode of heating, °С 85
Filtration factor (β-coefficient) ≥50
Outlet pressure, MPa, at least 0,4
Height of oil delivery relative to the outlet branch pipe, m 40,0
Oil heater power, kW 160; 200
Specific surface power of the oil heater W/cm2, not more 1,15
Maximum consumed power, kW 185; 225
A.C. Voltage, three phase, 50 Hz, V 380
Overall dimensions, mm, not more 2640×2270×2125
Mass, kg, not more 2900

* Parameters given in the table are guaranteed for one treatment cycle with the following parameters of the original oil: volumetric gas content — not more than 10,5%; mass moisture content — not more than 50 g/ton.

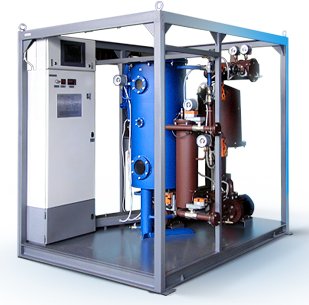

The Plant is manufactured in the form of a metallic container with the equipment installed inside and an operator’s working place provided. Original design of an inertia-free heater with double electric insulation varnish impregnation of the active part and subsequent heat treatment guarantees good moisture resistance and high insulation properties of the interturn insulation and do not allow direct contact of oil with current conducting parts, excludes overheating and thermal decomposition of oil, increases reliability. Heater sectionalizing allows switching it for the necessary power mode like: 40, 80, 120,160 and 200 kW.

Three-step system of filters provides treatment of at least 1000 tons of fresh oil from the manufacturing factory till regeneration or replacement of filter elements. An additional set of filter elements is delivered with each Plant in the spare parts and tools kit. The protection and automatics system provides automatic disconnection of the Plant in case of backward sequence of phases, with oil flow not available, in case of oil heater overheating, simultaneously a sound signal is generated.

Original design of the vacuum chamber with a new highly effective extension provides the Plant capacity up to 12 m3/h. By means of regulating valves and a gauge, which can be included in the Plant complete at Customer’s request, the required capacity from 0 to 12 m3/h is smoothly set. Application of an oil pump with capacity 30 m3/h in the Plant allows accomplishing heating and drying of transformers by oil-spray method, also functions of installation of plants for transformer oil treatment HTML are fulfilled in this mode.

In the vacuum system there is a branch pipe, which allows connecting it for transformer degassing and that of other equipment.

Small dimensions and mass of the Plant allow placing it in a railway container and conveying it by automobile transport without restrictions.

Also the Plant has reduced vibration which meets the requirements of labour safety rules.

In complete with Plants «Iney» and «Suhovey» the Plant UVM 10-10 U1 allows fulfilling all processes of transformer oil treatment and that of hard insulation of power transformers.
